ICEA S-95-658 power cables rated ≤2000V for indoor, outdoor, aerial, underground, or submarine use. Specifically designed for applications involving flexing, such as bascule, lift, and swing bridges. Also suitable for secondary distribution and service entrance cables. Conductor temp: 90°C normal, 250°C short-circuit.

Core Strengths

Standard cables fail under constant movement. Our ICEA S-95-658 cables are designed for bridge and elevator applications with frequent flexing. High flex-life, certified, fast delivery.

Standard

IEC60502-1 , BS 5467, ICEA S-95-658, CSA C22.2 , NFC 33-210 /NFC 32-322, AS-NZS 5000.1,etc

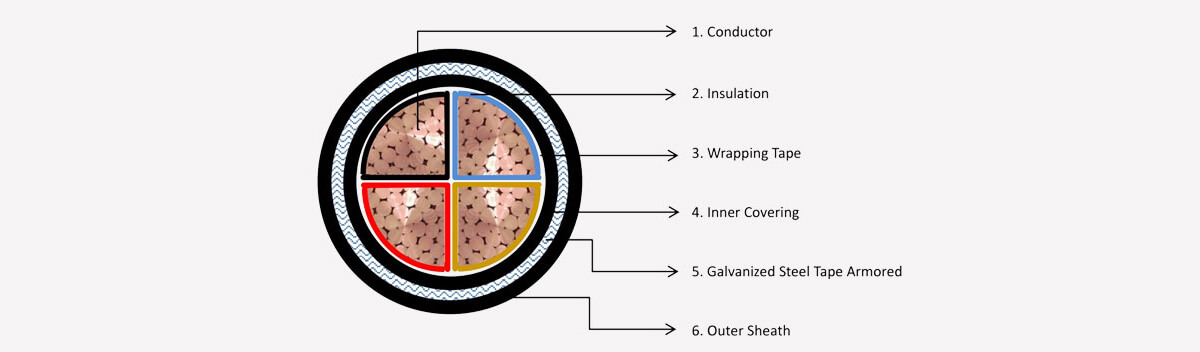

Construction

Conductor: Cu/Al (Solid/Stranded)

Insulation: XLPE/PVC/PE/LSHF

Inner sheath (applicable if there is armor layer): PVC/PE

Armor layer (if required) :Al tape/Al wire/ Steel wire / Steel Tape

Outer sheath : PVC/PE/LSHF

Features

1.Rated voltage: 0.6/1KV

2.Cable core number: 1Core , 2Core,3Core , 4Core , 5Core , 3+1Core(3.5Core) , 3+2 Core , 4+1Core , etc.

3.Max. Conductor long time operating temp. is 70℃ for PVC Insulation and 90℃ for XLPE Insulation

In short circuit, max. Temp. is 160℃ for PVC Insulation and 250℃ for XLPE Insulation.

Product Data Sheet

Nominal Dia. for Copper and Aluminum Conductors


Conductor size		Solied (mm)	Stranded
AWG or kcmil	mm²		Compact (mm)	ClassB Compressed	Class B	Class C	Class D
AWG or kcmil	mm²		Compact (mm)	ClassB Compressed	Class B	Class C	Class D
18	0.823	1.02	\	\	1.17	\	\
16	1.31	1.29	\	\	1.47	\	\
15	1.65	1.45	\	\	1.65	\	\
14	2.08	1.63	\	1.79	1.84	1.87	1.87
13	2.63	1.83	\	2.02	2.07	2.10	2.10
12	3.31	2.05	\	2.26	2.32	2.35	2.36
11	4.17	2.30	\	2.53	2.62	2.64	2.64
10	5.26	2.59	\	2.87	2.95	2.97	2.97
9	6.63	2.91	\	3.20	3.30	3.33	3.35
8	8.37	3.26	3.40	3.58	3.71	3.76	3.76
7	10.60	3.67	\	4.01	4.17	4.22	4.22
6	13.30	4.11	4.29	4.52	4.67	4.72	4.72
5	16.80	4.62	\	5.08	5.23	5.28	5.31
4	21.10	5.19	5.41	5.72	5.89	5.94	5.97
3	26.7	5.83	6.05	6.40	6.60	6.68	6.71
2	33.6	6.54	6.81	7.19	7.42	7.52	7.54
1	42.4	7.35	7.59	8.18	8.43	8.46	8.46
1/0	53.5	8.25	8.53	9.17	9.45	9.50	9.50
2/0	37.4	9.27	9.55	10.30	10.60	10.70	10.70
3/0	85	10.40	10.70	11.6	11.9	12.0	12.00
4/0	107	11.70	12.10	13.0	13.4	13.4	13.45
250	127	12.70	13.20	14.2	14.6	14.6	14.60
300	152	13.90	14.50	15.5	16.0	16.0	16.00
350	177	15.00	15.60	16.8	17.3	17.3	17.30
400	203	16.10	16.70	17.9	18.5	18.5	18.5
450	228	17.00	17.80	19.0	19.6	19.6	19.6
500	253	18.00	18.70	20.0	20.7	20.7	20.7
550	279	\	19.70	21.1	21.7	21.7	21.7
600	304	\	20.70	22.0	22.7	22.7	22.7
650	329	\	21.50	22.9	23.6	23.6	23.60
700	355	\	22.30	23.7	24.5	24.5	24.50
750	380	\	23.10	24.6	25.3	25.4	25.43
800	405	\	23.80	25.4	26.2	26.2	26.20
900	456	\	25.40	26.9	27.8	27.8	27.80
1000	507	\	26.90	28.4	29.3	29.3	29.30
1100	557	\	\	29.8	30.7	30.7	30.78
1200	608	\	\	31.1	32.1	32.1	32.10
1250	633	\	\	31.8	32.7	32.8	32.80
1300	659	\	\	32.4	33.4	33.4	33.40
1400	709	\	\	33.6	34.7	34.7	34.7
1500	760	\	\	34.8	35.9	35.9	35.9
1600	811	\	\	35.9	37.1	37.1	37.1
1700	861	\	\	37.1	38.2	38.2	38.2
1750	887	\	\	37.60	38.8	38.8	38.8
1800	912	\	\	38.2	39.3	39.3	39.3
1900	963	\	\	39.2	40.4	40.4	40.4
2000	1013	\	\	40.2	41.5	41.5	41.5
2500	1267	\	\	44.9	46.3	46.3	46.3
3000	1520	\	\	49.2	50.7	50.7	50.7

Conductor Sizes,Insulation Thickness and Test Voltages
Conductor Sizes,Insulation Thickness and Test Voltages
Rated Circuit Voltage (Phase to Phase)	Conductor size	Nominal Insulation Thickness		AC Test voltage	DC Test Voltage
Rated Circuit Voltage (Phase to Phase)	Conductor size	A	B	AC Test voltage	DC Test Voltage
V	AWG/kcmil	mm		KV	KV
0-600	43357.00	1.016	0.762	3.5	10.5
	43314.00	1.397	1.143	5.5	16.5
	1-4/0	2.032	1.397	7	21
	225-500	2.413	1.651	8	24
	525-1000	2.64	2.032	10	30
	1025-2000	3.175	2.54	11.5	34
601-2000	43357.00	1.397	1.016	5.5	16.5
	43314.00	1.778	1.397	7	21
	1-4/0	2.159	1.651	8	24
	225-500	2.667	1.778	9.5	28.5
	525-1000	3.048	2.159	11.5	34.5
	1025-2000	3.556	2.921	13.5	40

Jacket Thickness
Jacket thickness for Single-conductor cables			Thickness of common overall jacket of multiple-conductor cable
Calculated dia. of cable under jacket	Jacket Thickness		Calculated dia. of cable under jacket	Jacket Thickness
Calculated dia. of cable under jacket	Min.	Nominal	Calculated dia. of cable under jacket	Min.	Nominal
mm	mm	mm	mm	mm	mm
6.35 or less	0.33	0.38	10.8 or less	1.02	1.14
6.38-10.8	0.635	0.76	10.82-17.78	1.27	1.52
10.82-17.78	1.02	1.14	17.81-38.10	1.78	2.03
17.81-38.1	1.4	1.65	38.13-63.50	2.41	2.79
38.13-63.5	2.03	2.41	63.53 and larger	3.05	3.56
63.53 & later	2.67	3.18
